15kV 200A/600A Bushings & Inserts products are insulated, fully shielded components designed for high-voltage cable systems, meeting IEEE386-2016 standards. They are used in ring main units, transformers, and cable branch boxes, providing secure connections, cable branching, and grounding. These components offer reliable performance in high-voltage environments, ensuring protection against dust, water, and other environmental factors.
Model :
CEE ZT / JDT / ZTR / MP / TTL / DTTBQ / MPJ SeriesCapacity :
15kV 200A/600AApplications :
Ring Main Units / Transformers / Grounding & Branching / Cable MaintenanceProduct Origin :
ChinaSales Type :
Retail / Wholesale / Distributor SalesCustomization :
Support
15kV 200A Bilateral Standoff Bushing |
|
|
|

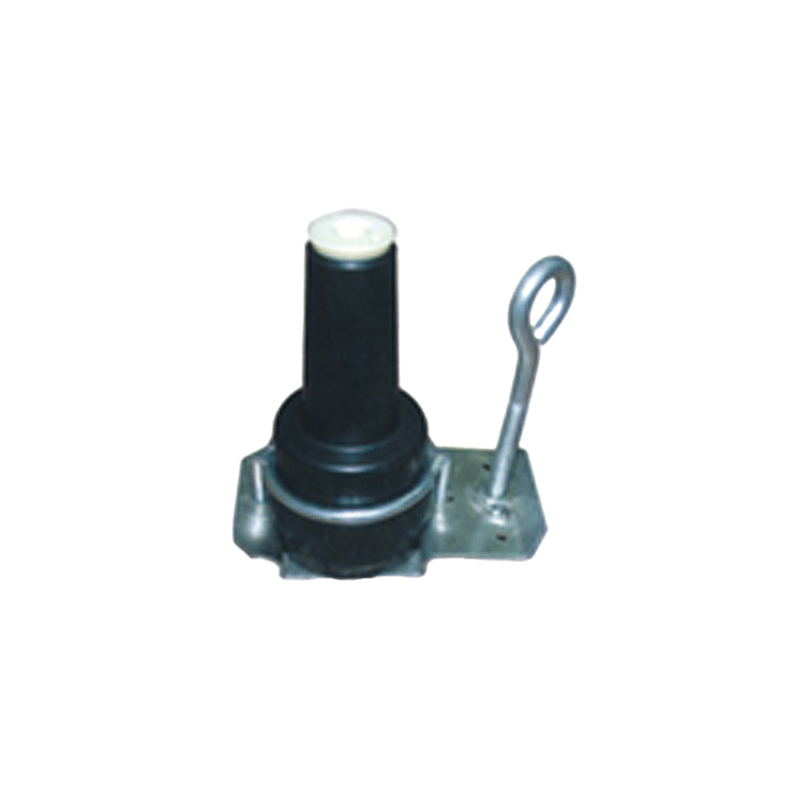

![]() 15kV 200A Insulated Standoff Bushing |
|
|
||
![]() 15kV 200A Bushing Well |
|
|
|
||
|
![]() 15kV 200A Rotatable Feedthru Insert |
|
![]() 15kV 200A Bushing Insert |
|
|
|
![]() 15KV 200A/600A Bushing Extender |
200A American Type Loadbreak Connector |
|||
Rated Voltage | 15kV | 25kV | 35kV |
Rated Current | 200A | 200A | 200A |
Partial Discharge | Q≦5pC@11kV | Q≦5pC@19kV | Q≦5pC@26kV |
AC Withstand Voltage | 34kV/1min | 40kV/1min | 50kV/1min |
Lightning Impulse Withstand Voltage | 95kV | 125kV | 150kV |
Short Time Withstand Current | 3.5kA,3S | 3.5kA,3S | 3.5kA,3S |
Rated Breaking Current | 14.4kV,200A,10 times | 26.3kV,200A,10times | 36.6kV,200A,10times |
Fault Making Current | 0.17S,10kA,10times | 0.17S,10kA,10times | 0.17S,10kA,10times |
Conductor Cross Section | 25-120mm² | 25-120mm² | 25-120mm² |
600A American Type Deadbreak Connector |
|||
Rated Voltage | 15kV | 25kV | 35kV |
Rated Current | 600A | 600A | 600A |
Partial Discharge | Q≦5pC@11kV | Q≦5pC@19kV | Q≦5pC@26kV |
AC withstand voltage | 34kV/1min | 40kV/1min | 50kV/1min |
Lightning Impulse Withstand Voltage | 95kV | 125kV | 150kV |
Short Time Withstand Current | 3.5kA,3S | 3.5kA,3S | 3.5kA,3S |
Conductor Cross Section | 35-400mm² | 35-400mm² | 35-400mm² |
